ELEGRP 30/50 Amp Flush Mount Power Receptacle & Plug Combo
The ELEGRP Power Receptacle & Plug Combo provides a reliable and durable solution for heavy-duty electrical applications. Designed to meet NEMA 14-30R/14-50R and NEMA 14-30P/14-50P standards, this set is ideal for industrial, commercial, and residential power needs.
Key Features

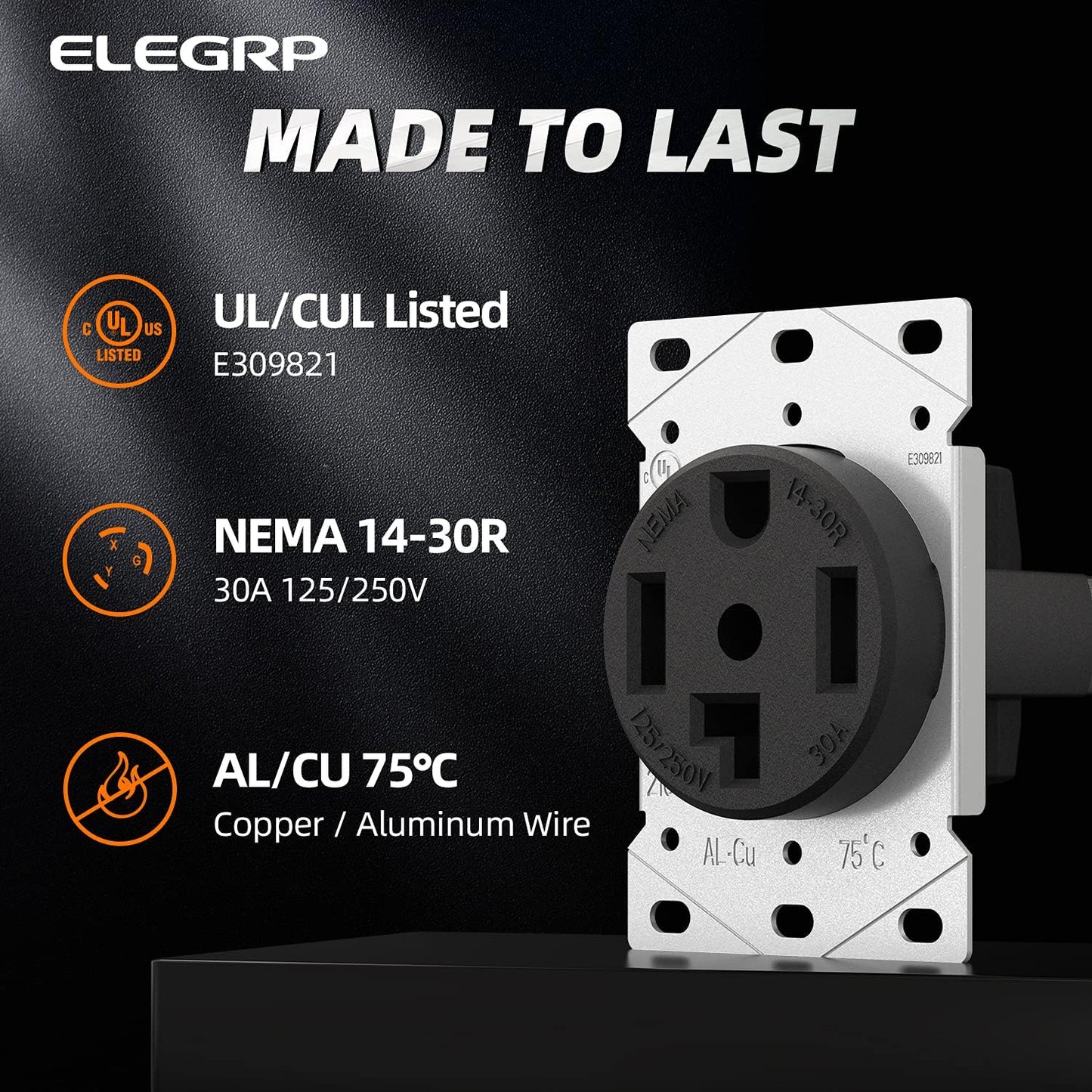

Power Receptacle
✅ Embedded Flush Mount Design
Features an embedded design with corrosion-resistant mounting straps for durability and seamless integration.
✅ Specifications
Rated at 30/50 Amps and 125/250 Volts, compliant with NEMA 14-30R and NEMA 14-50R standards.
UL certified for safety and reliability.
✅ Durable Construction
Built with a nylon housing and brass contacts for superior impact resistance and excellent conductivity.
✅ Easy Installation
Ready-to-wire terminals reduce installation time significantly.
Clearly marked terminals for quick identification and fast wiring.
Accepts wire sizes from #10 to #4 AWG and supports both copper and aluminum wires.
✅ Wide Application
Suitable for use in electrical systems, heating devices, and power management applications.
Heavy Duty Plug
✅ Extremely Durable Design
Rated for 30/50 Amps, 125/250 Volts, compliant with NEMA 14-30P and NEMA 14-50P standards.
Designed with a 3 Pole 4 Wire Straight Blade Angle Plug with grounding, ensuring reliable performance.

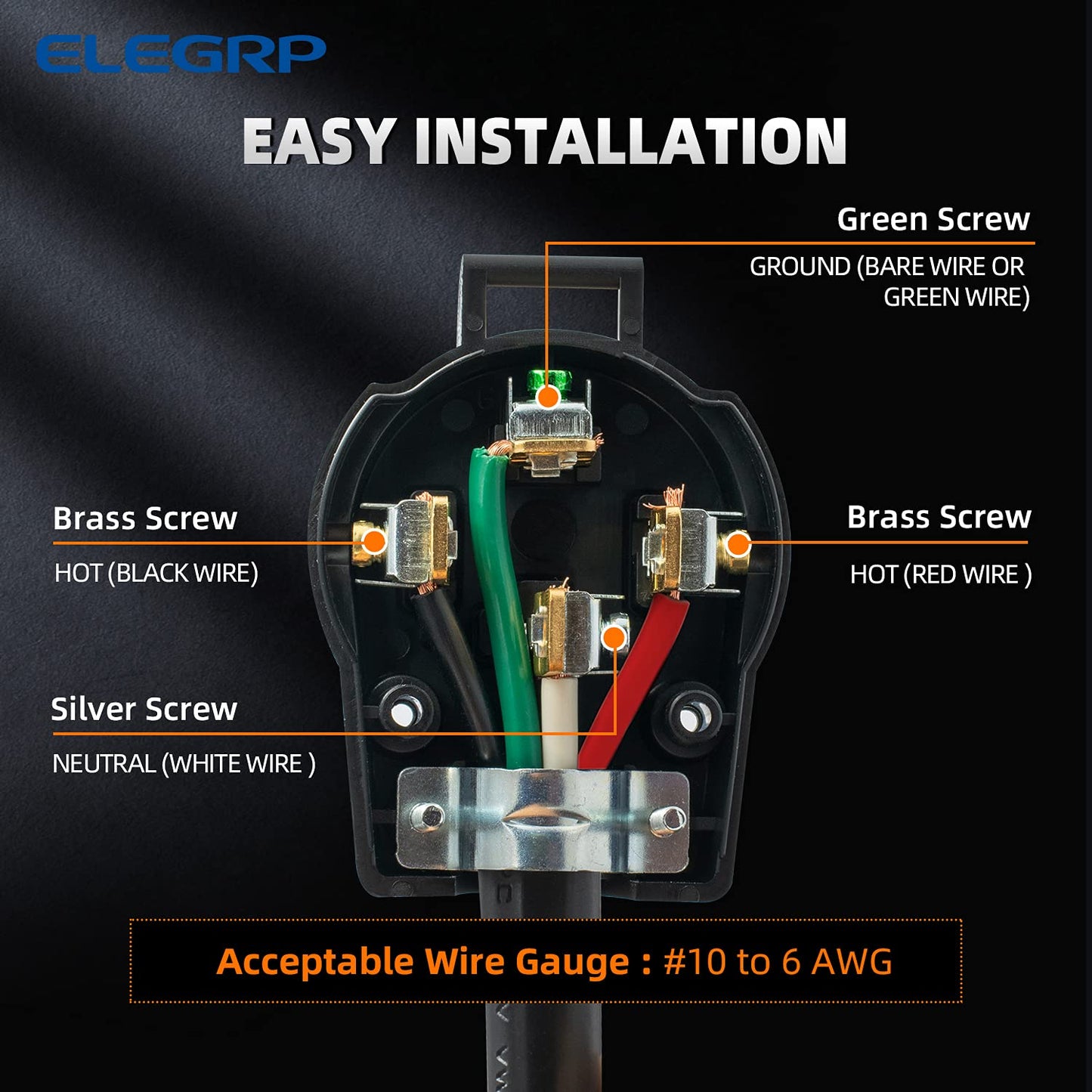

✅ Easy Assembly
Front-hinged shell and bottom design make assembly simple and efficient.
Clearly marked terminals for fast wiring and pressure plates to protect wires from wear and erosion.
Accepts wire sizes from #10 to #6 AWG for flexibility with heavy-duty cables.
Includes a built-in rejection feature to prevent improper blade positioning.
✅ Wide Application
Perfect as a replacement plug for welders, Electric Vehicle (EV) chargers, generators, and other industrial-grade devices.
Specifications
Brand: ELEGRP
Color: Black
Receptacle Dimensions: 3.98 x 2.76 x 2.64 inches
Plug Dimensions: 3.94 x 3.94 x 3.94 inches
Current Rating: 30/50 Amps
Voltage: 125/250 Volts
Configuration: 3 Pole 4 Wire
Certifications: UL Listed
Why Choose ELEGRP Power Receptacle & Plug Combo?
Heavy Duty Design: Durable nylon housing and brass contacts for long-lasting performance.
Certified Safety: UL listed to meet stringent safety standards.
Easy Installation: Ready-to-wire terminals and hinged shell for fast assembly.
Versatile Applications: Ideal for welders, EV chargers, generators, and more.
Upgrade your electrical connections with the ELEGRP Power Receptacle & Plug Combo for unmatched durability, safety, and ease of use.
