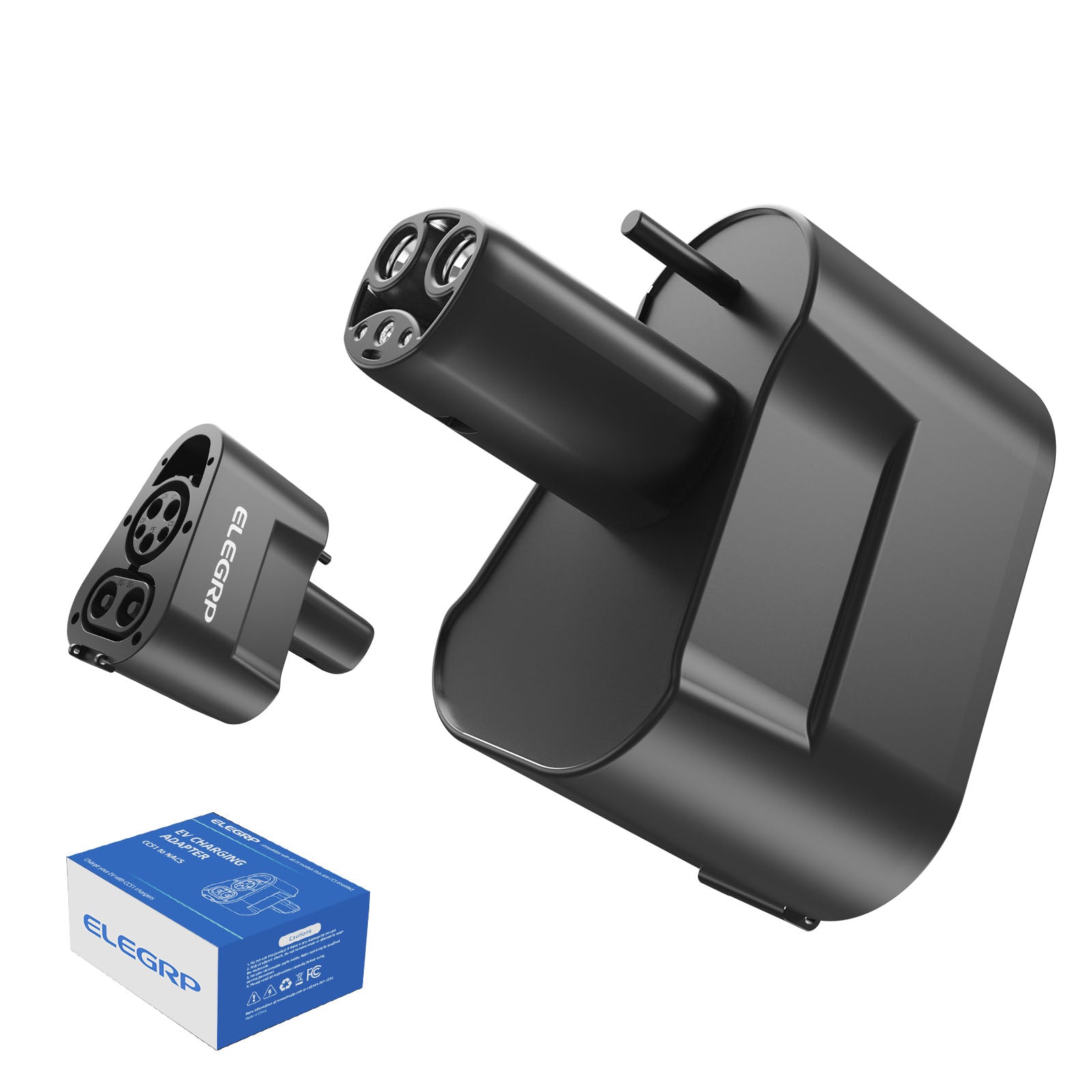

EV Charging Adapter 500A 1000V DC, CCS1 Charger to NACS Vehicle
EV Charging Adapter 500A 1000V DC, CCS1 Charger to NACS Vehicle
All CCS1 charging stations.
Tesla Model 3, S, X, Y, and other EVs with NACS port that are CCS enabled (excluding Tesla Cybertruck).
Couldn't load pickup availability
Description
Description

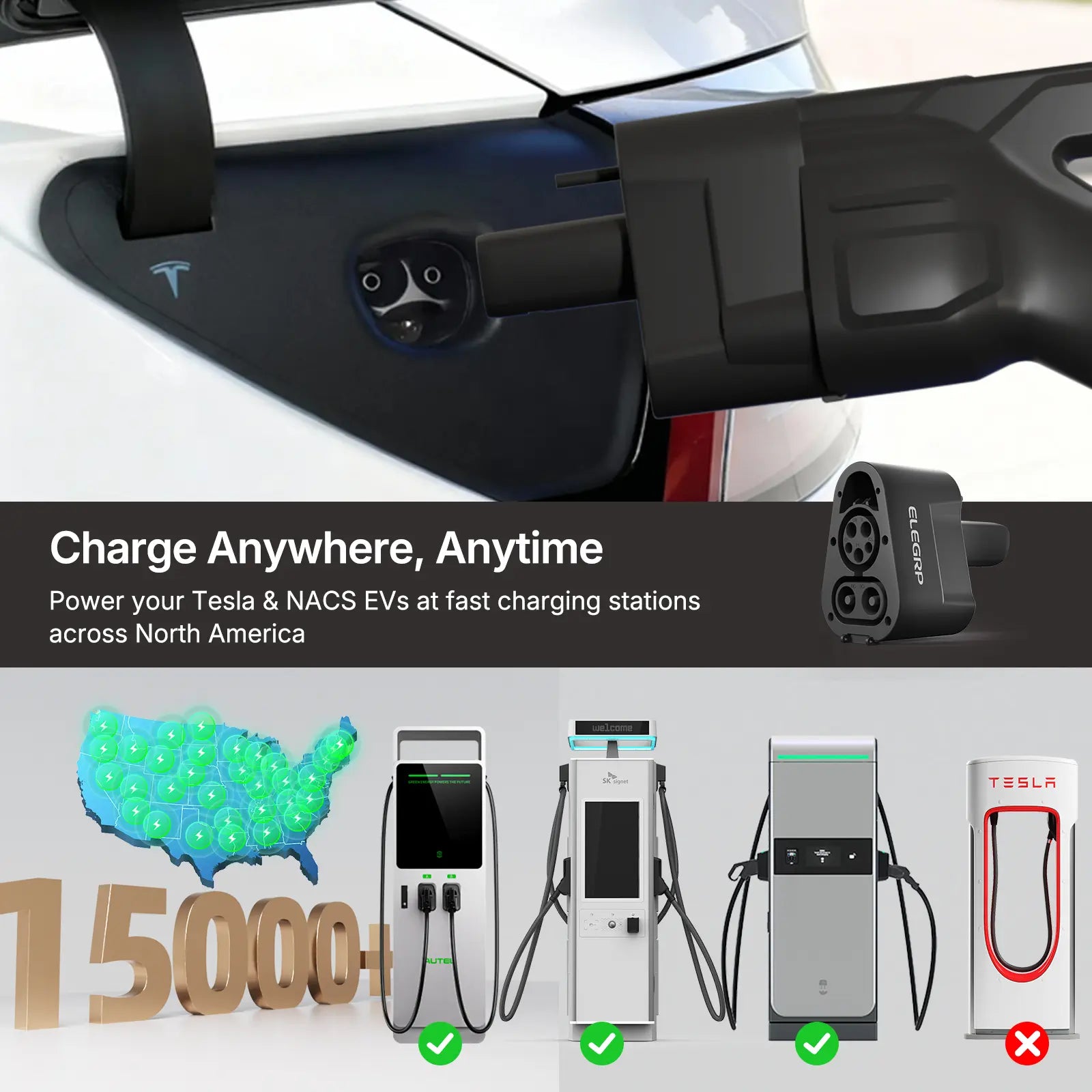

Charge your NACS port-equipped vehicle on CCS1 DC chargers.
Support a maximum output of 500A /1000V DC, providing fast and efficient charging for your EVs, reducing wait time.
Compatible with Tesla Model 3, S, X, Y, and other EVs with a NACS port that are CCS enabled (excluding Tesla Cybertruck). It supports all CCS1 charging stations.
Compact and portable design, easy to use and store in the glove box of your EV. Ideal for charging your electric vehicle during camping or travelling on the road.

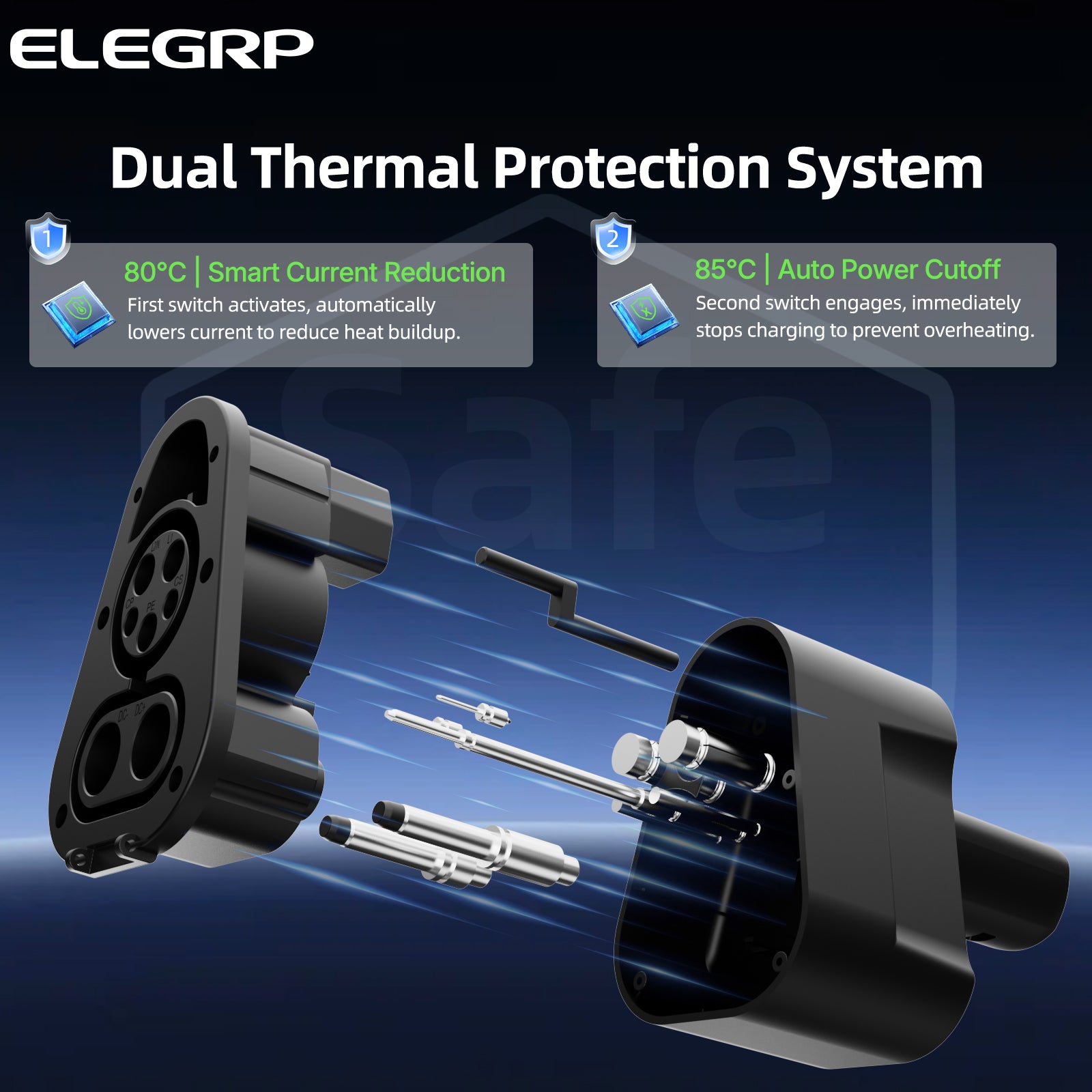

The integrated temperature sensor automatically shuts off power during overheating to prevent overload and short circuits.
FCC-certified charging adapter with 10,000 lifetimes.
IP54 protection rate to resist dust and water ingress, ensuring safety for outdoor applications in rain and snow. It can be used in extreme weather conditions from -22°F to +122°F.
Robust design enables high impact resistance to avoid damage from accidental crushing by the vehicle.
Return & Warranty
Return & Warranty
Worry-Free Warranty: Enjoy a 2-year warranty for peace of mind.
30-Day Returns: Hassle-free returns within 30 days of purchase.
- Rated Current: Up to 500A
- Rated Voltage: Up to 1000V DC
- Applicable Charging Station: All CCS1 Chargers
- Applicable Electric Vehicle: Tesla Model 3/S/X/Y and other EVs with NACS port (excluding Cybertruck)
- Waterproof: IP54

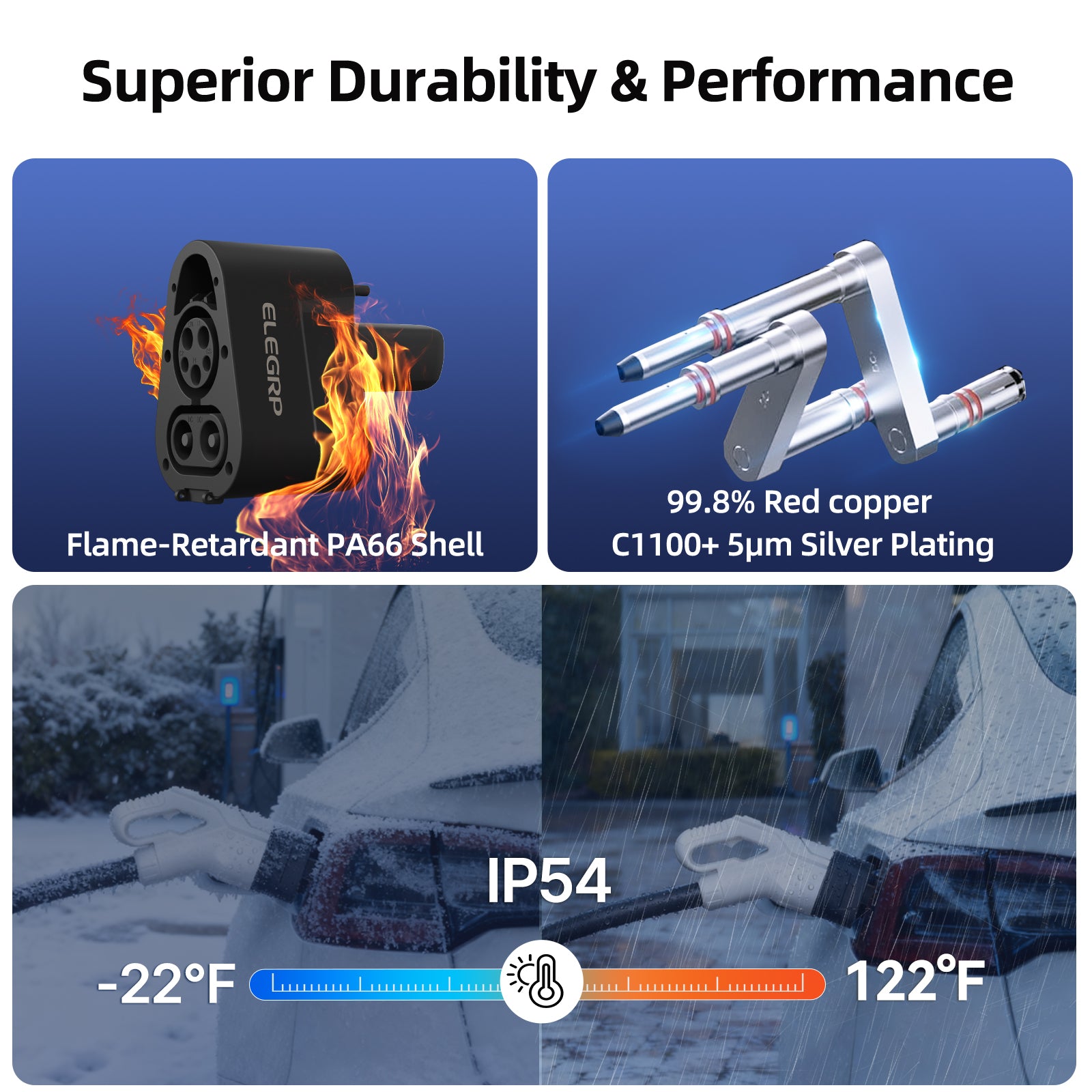

- Conductor: Power terminals-Red copper C1100, Signal terminal-Brass copper
- Contact resistance: ≤0.5mΩ
- Operating Temperature: -22°F to +122°F
- Temperature monitoring: PBE System
- Certifications: FCC Certified - HUAX241009095KC
This adapter is only for Tesla vehicles that support CCS. NACS manufactured before October 2020 require a CCS ENABLED BOX.
Please confirm the compatibility of your NACS vehicle with this adapter. If your NACS vehicle does not support CCS, please do not purchase this adapter.

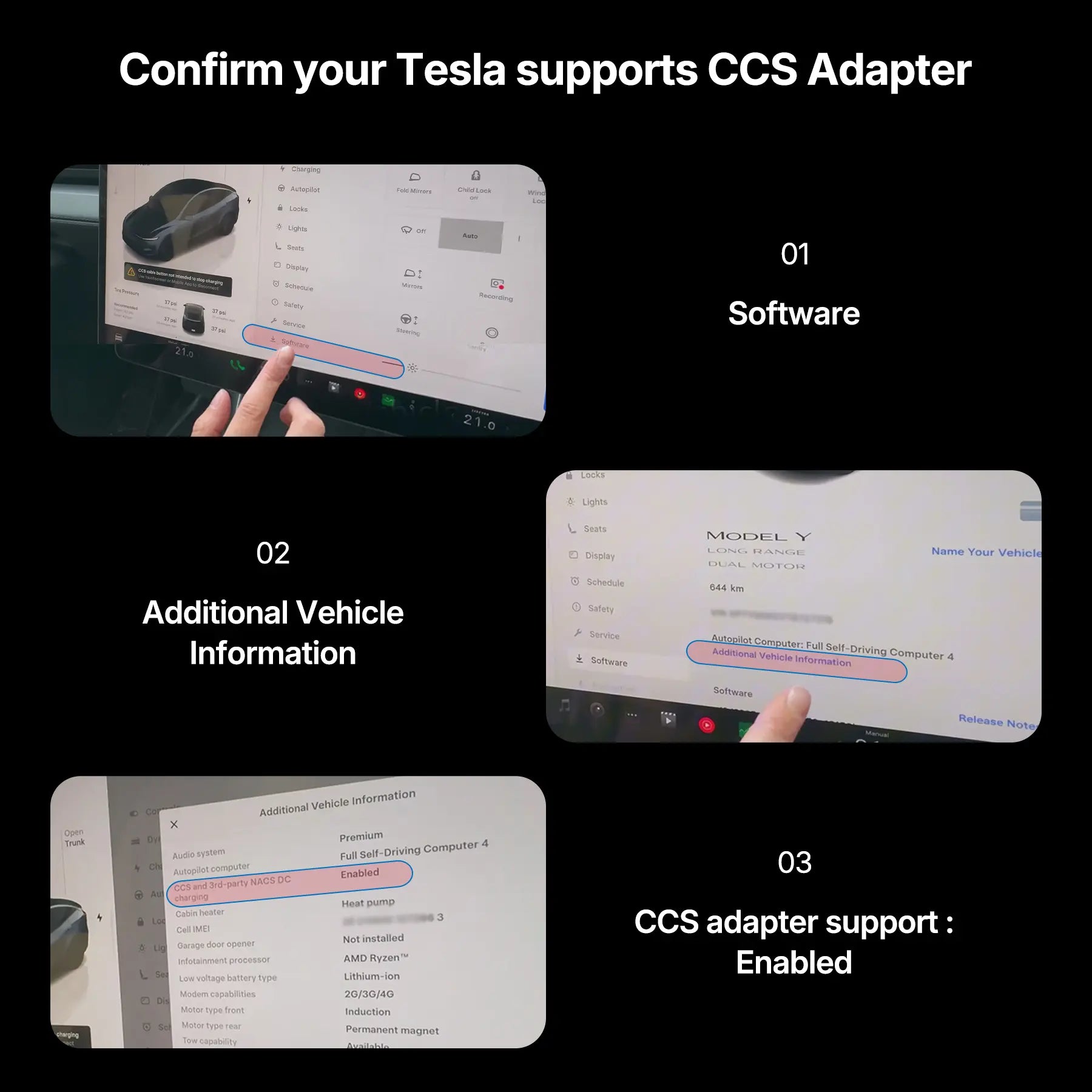

How to Check if Your Vehicle Supports CCS?
1. Start the NACS, open the [Settings] menu on the display;
2. Select the [Software] option;
3. Click [Vehicle Information];
4. Check if the page displays CCS Adapter Support: Enabled.

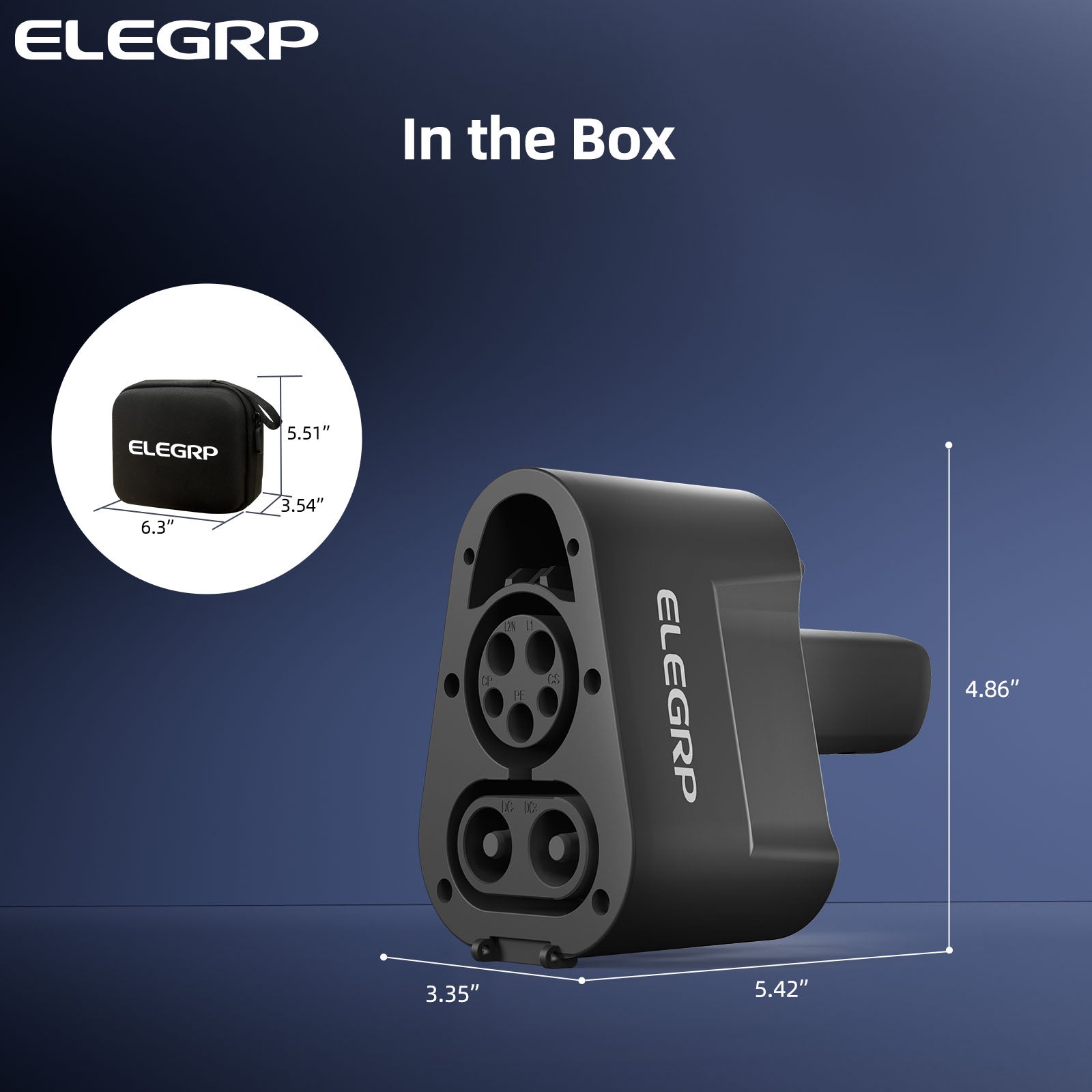

- CCS1 to NACS DC Adapter * 1
- User Manual * 1
- Certificate of Compliance * 1
- Carry Bag * 1
Which EV charging adapter is right for you?
|
|
|
|
|
|
ECA25-SN-300-DC01 |
ECA25-NS400-DC01 |
ECA25-SN080-AC01 |
ECA25-NS080-AC01 |
|
|
Max 500A |
Max 500A |
Max 80A |
Max 80A |
|
|
Max 1000V DC |
Max 1000V DC |
Max 250V AC |
Max 250V AC |
|
|
All CCS1 Chargers |
Tesla V3 and V4 Superchargers |
All J1772 chargers |
Tesla High Powered Wall Connectors, Destination Chargers, Mobile |
|
|
Tesla Model 3/S/X/Y and other EVs with NACS port (excluding Cybertruck) |
EVs with CCS1 port |
Tesla Model 3/S/X/Y and other EVs with NACS port |
EVs with J1772 port |
|
|
IP54 |
IP54 |
IP54 |
IP54 |
|
|
SAE J1772, SAE J3400, IEC 62196-3 |
SAE J1772, SAE J3400, IEC 62196-3 |
SAE J1772, SAE J3400 |
SAE J1772, SAE J3400 |
|
|
FCC |
FCC |
FCC |
FCC |
|
|
137.6*85.14*122.98 |
126.4*70.1*107.12 |
87.84*51.20*68.17 |
125.73*55*79.57 |
|
|
2 Years |
2 Years |
2 Years |
2 Years |

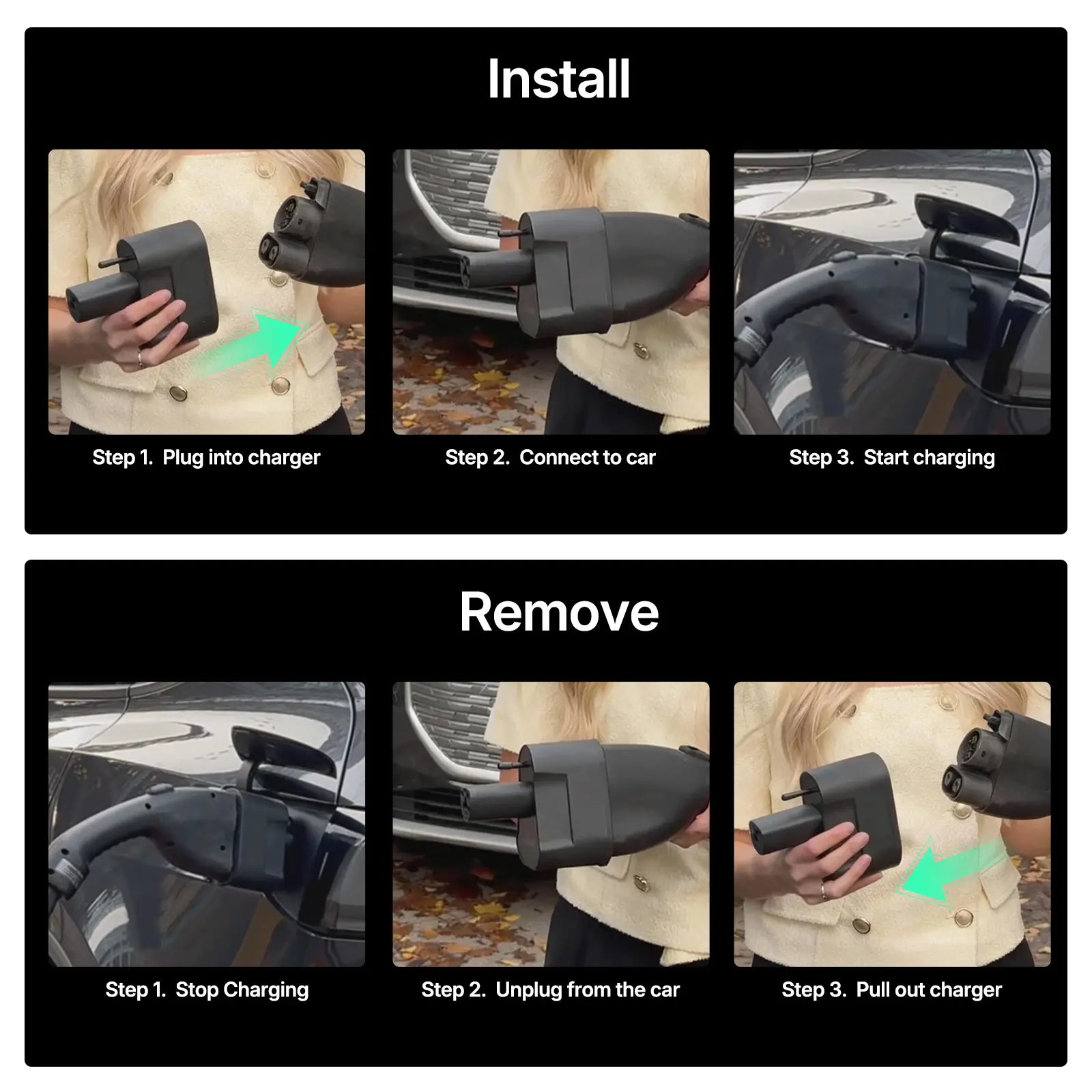

Easy Steps to Charge and Remove

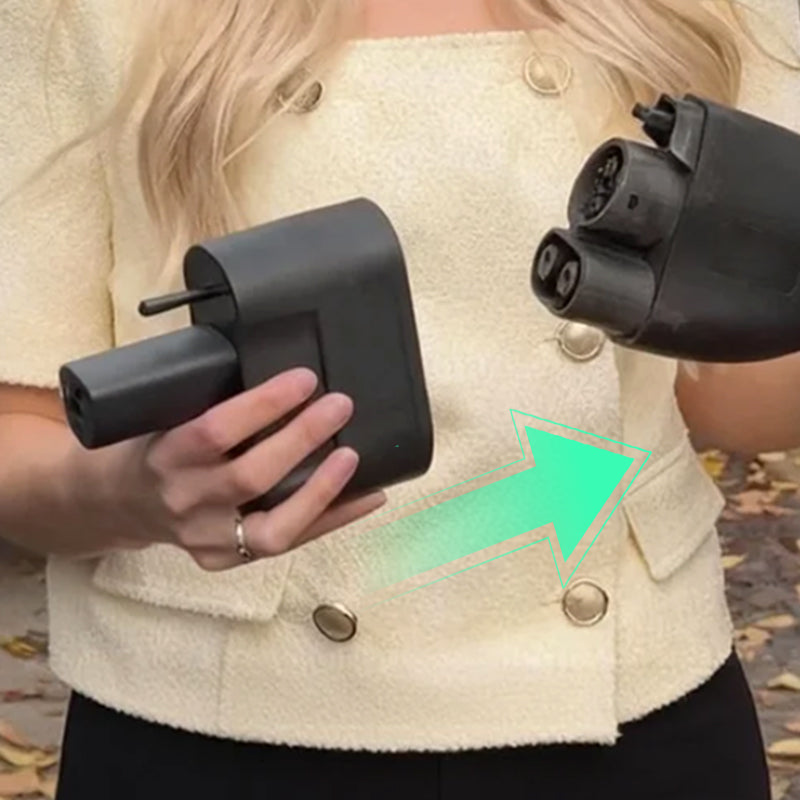

Plug into charger

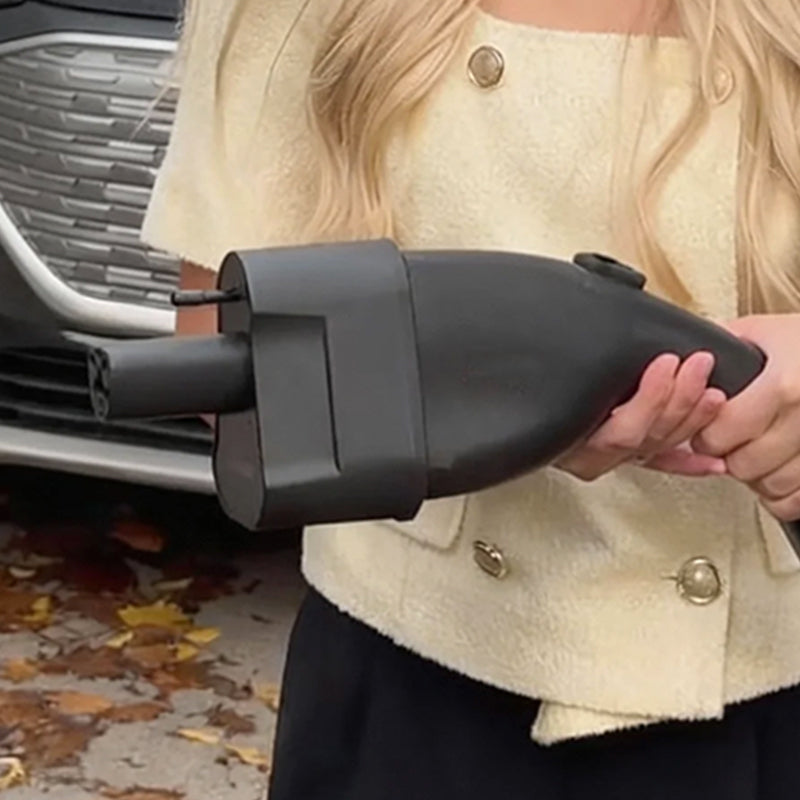

Connect to car

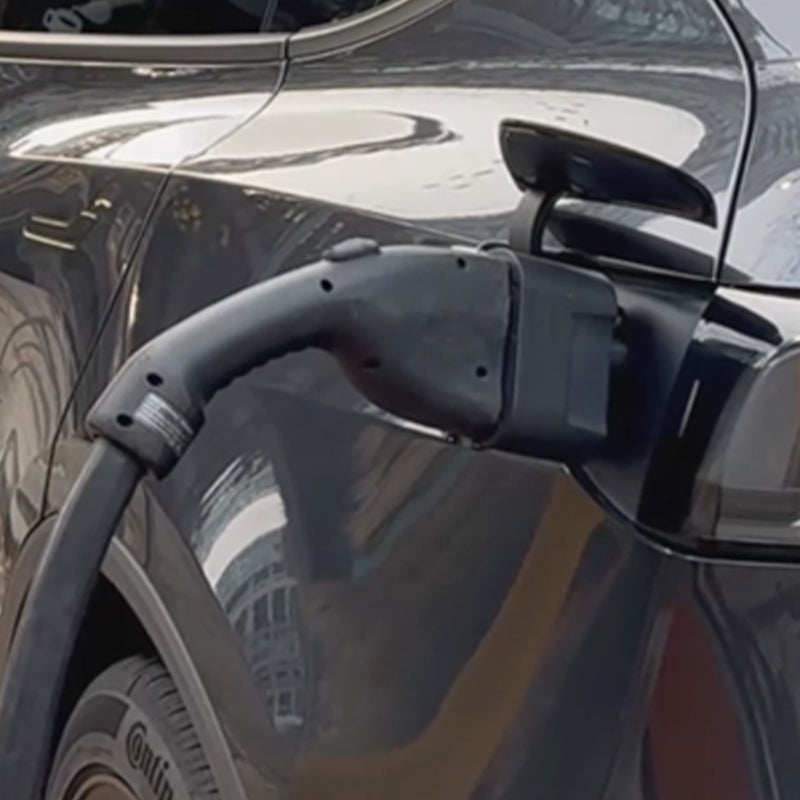

Start charging
Stop Charging
Unplug from the car
