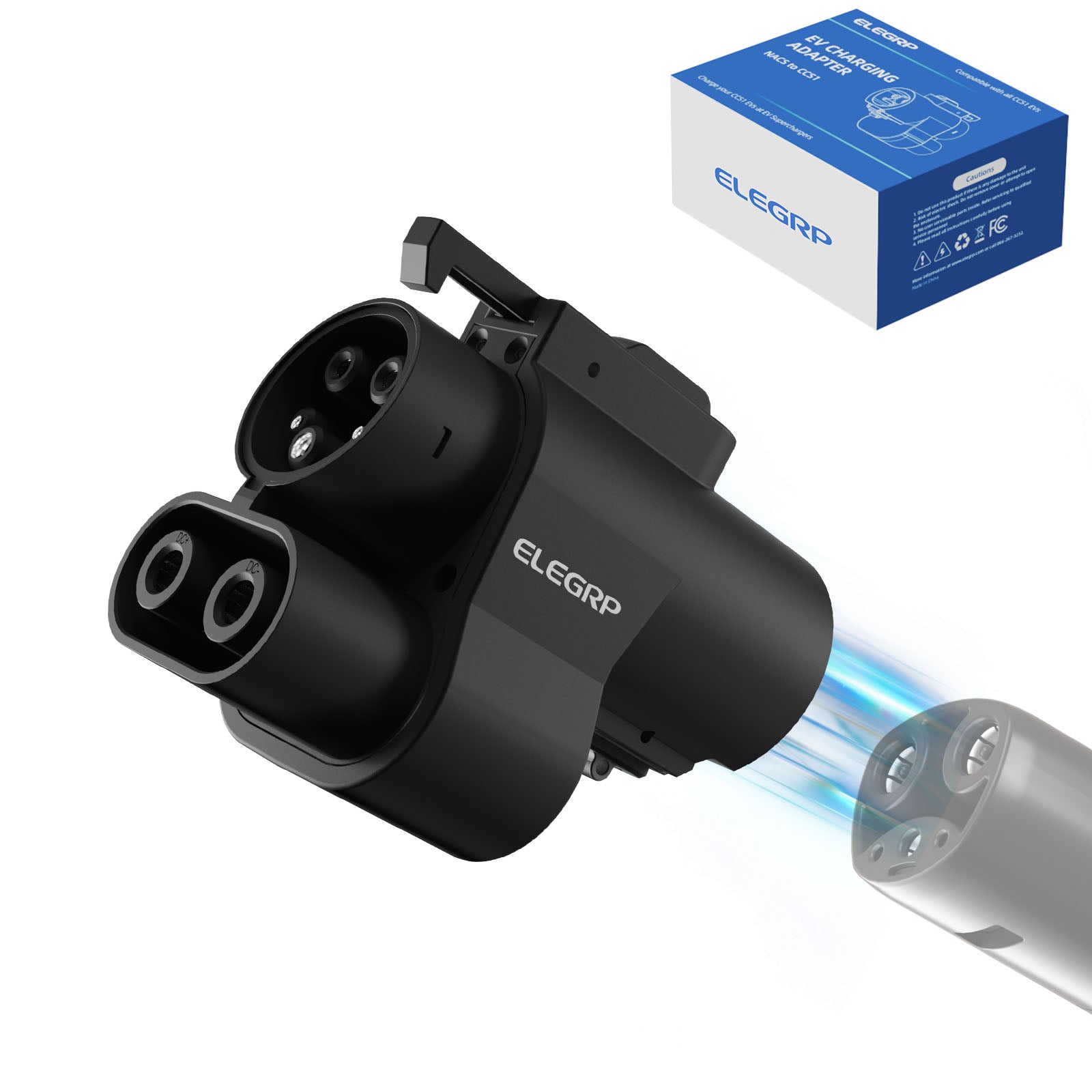

EV Charging Adapter 500A 1000V DC, NACS Charger to CCS1 Vehicle
EV Charging Adapter 500A 1000V DC, NACS Charger to CCS1 Vehicle
Tesla V3 and V4 Superchargers

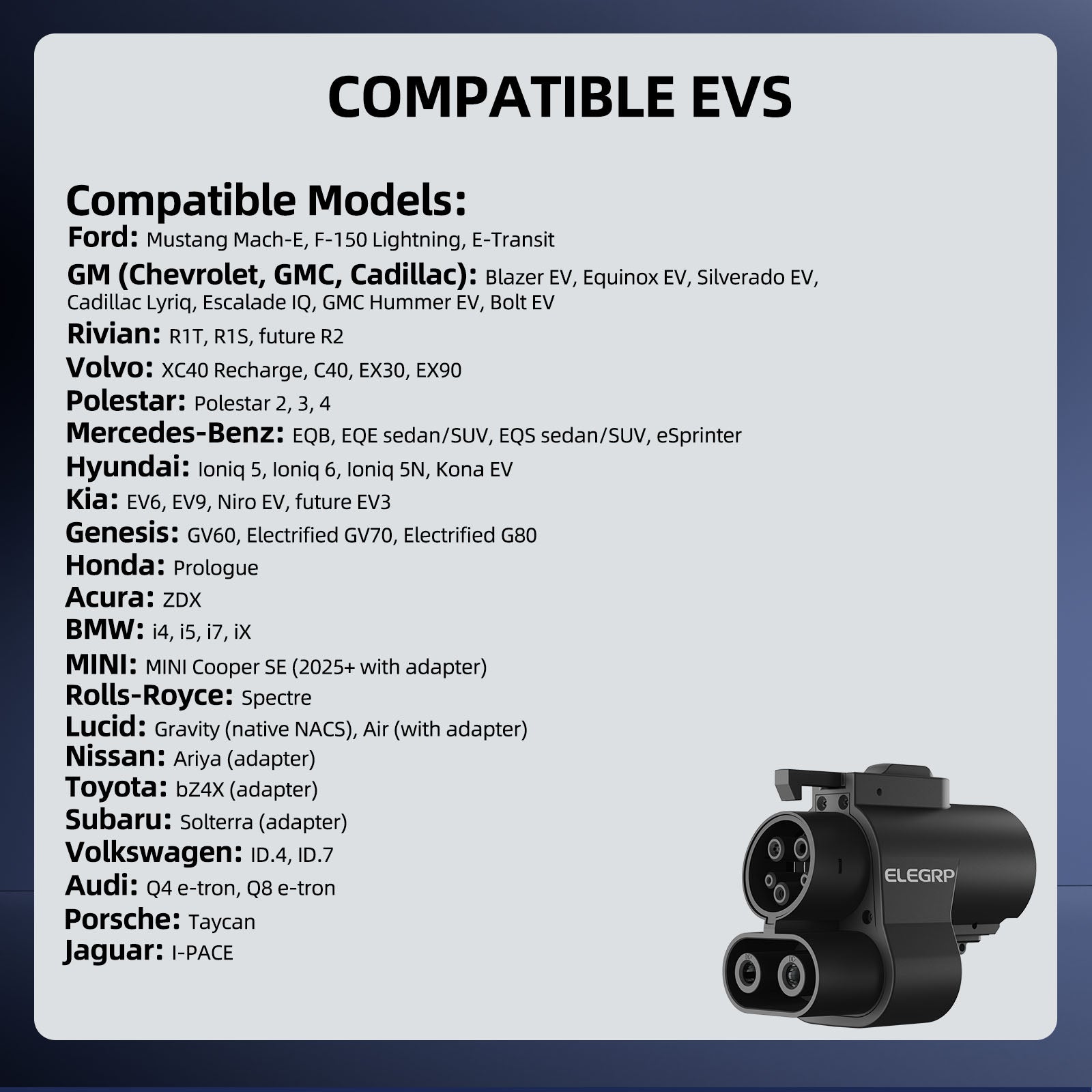

Ford, GM (Chevrolet, GMC, Cadillac), Rivian, Volvo, Polestar, Mercedes-Benz, Hyundai, Kia, Genesis, Honda, Acura, BMW, MINI, Rolls-Royce, Lucid, Nissan, Toyota, Subaru, Volkswagen, Audi, Porsche, Jaguar
Couldn't load pickup availability
Description
Description

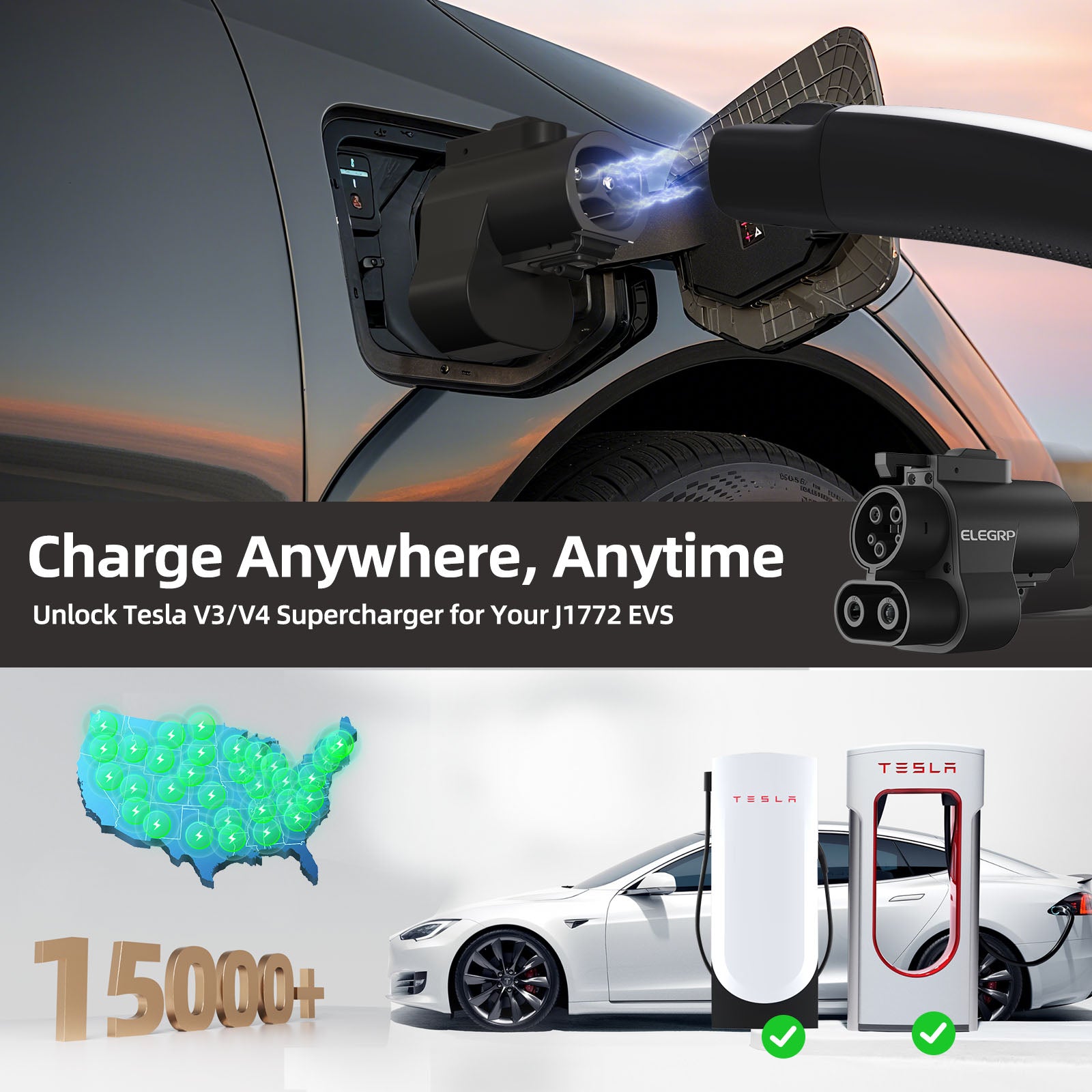

Charge your non-Tesla vehicles to use Superchargers and NACS DC chargers
Support a maximum output of 500A /1000VDC, providing fast and efficient charging for your EVs, reducing wait time.
Compatible with EVs with a CCS1 port. It supports Tesla V3 and V4 superchargers.
Secure interlock design to help ensure a reliable connection during high-voltage DC fast charging.
Compact and portable design, easy to use and store in the glove box of your EV. Ideal for charging your electric vehicle during camping or traveling on the road.

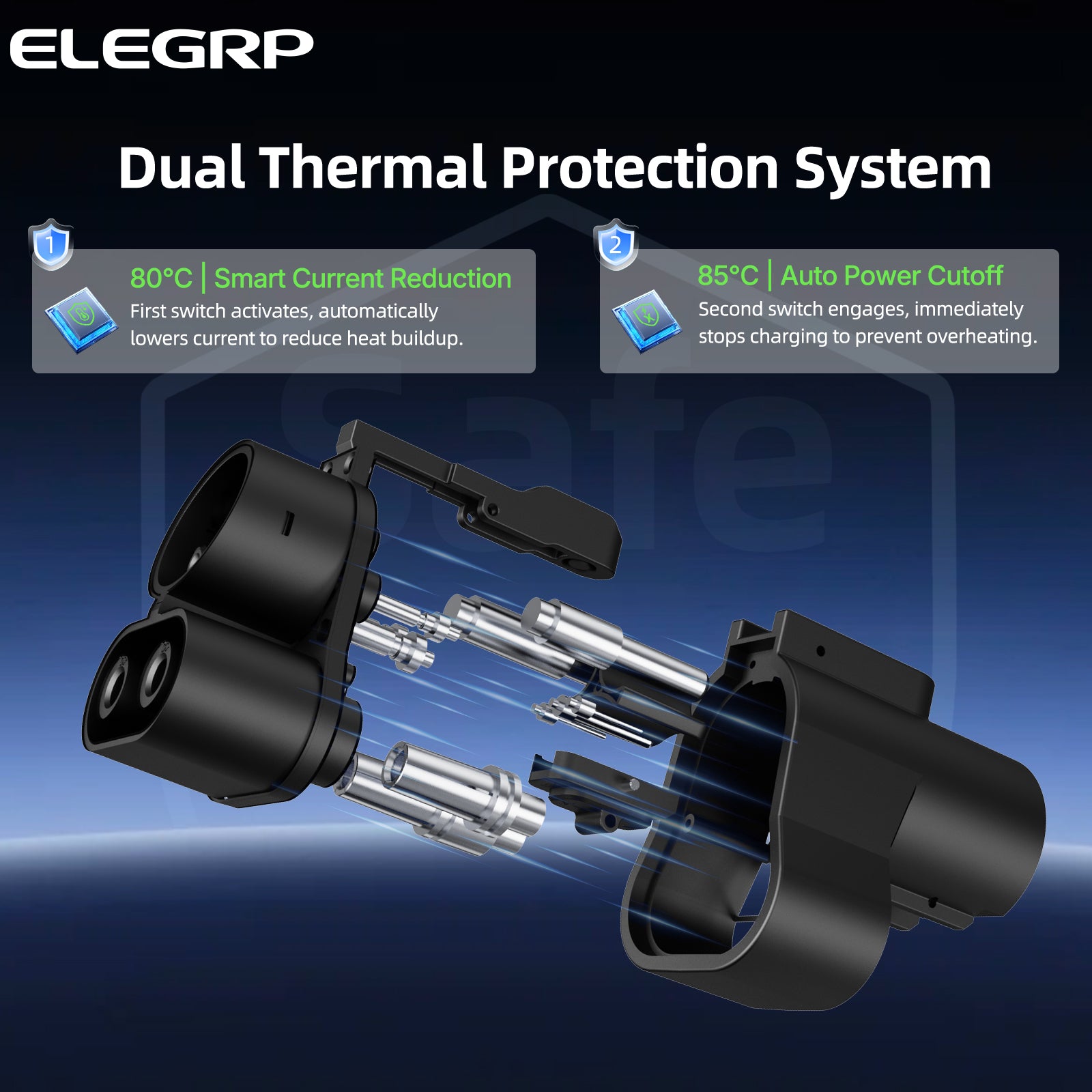

The integrated temperature sensor automatically shuts off power during overheating to prevent overload and short circuits.
FCC-certified charging adapter with 10,000 lifetimes.
IP54 protection rate to resist dust and water ingress, ensuring safety for outdoor applications in rain and snow. It can be used in extreme weather conditions from -22°F to +122°F.
Robust design enables high impact resistance to avoid damage from accidental crushing by the vehicle.
Return & Warranty
Return & Warranty
Worry-Free Warranty: Enjoy a 2-year warranty for peace of mind.
30-Day Returns: Hassle-free returns within 30 days of purchase.
- Rated Current: Up to 500A
- Rated Voltage: Up to 1000V DC
- Applicable Charging Station: Tesla V3 and V4 Superchargers
- Applicable Electric Vehicle: EVs with CCS1 port
- Waterproof: IP54

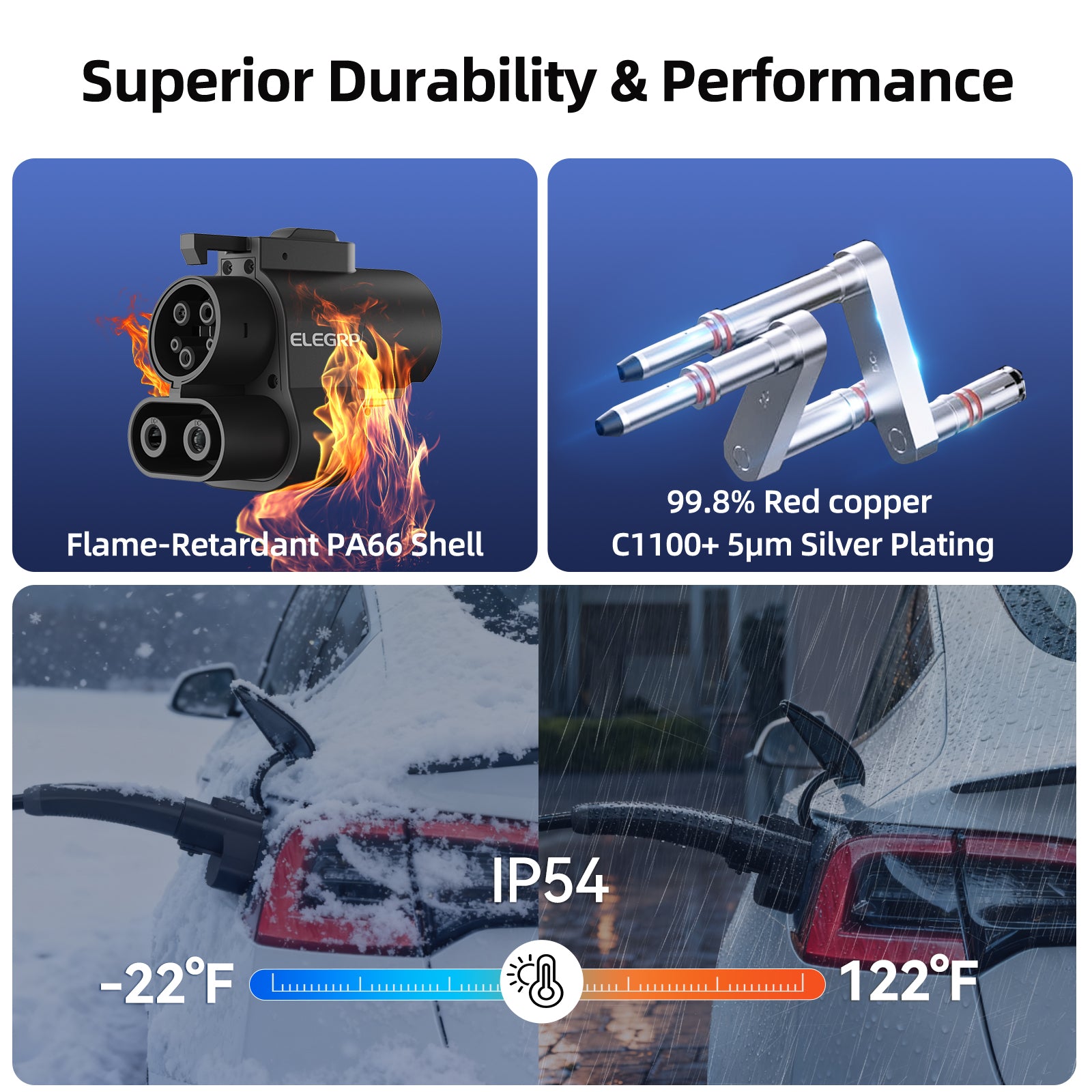

- Conductor: Power terminals-Red copper C1100, Signal terminal-Brass copper
- Contact resistance: ≤0.5mΩ
- Operating Temperature: -22°F to +122°F
- Temperature monitoring: PBE System
- Certifications: FCC Certified - HUAX241009095KC
This Adapter is only for charging American standard electric vehicles in NACS-standard charging stations. Please refer to your vehicle's user manual for the charging port position and more detailed charging instructions. If your CCS Vehicle does not support the NACS port, please do not purchase this adapter.

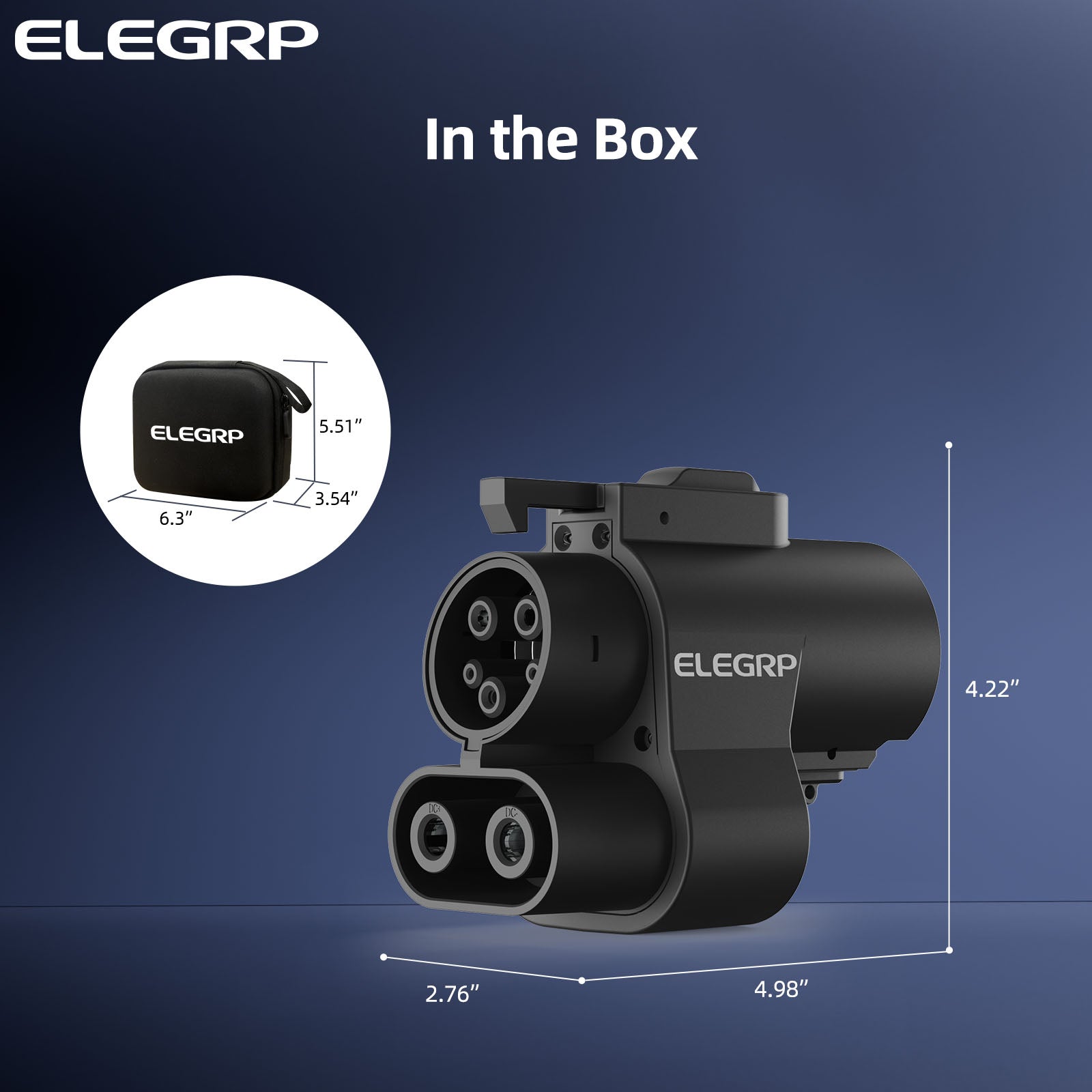

- NACS to CCS1 DC Adapter * 1
- User Manual * 1
- Certificate of Compliance * 1
- Carry Bag * 1
Which EV charging adapter is right for you?
|
|
|
|
|
|
ECA25-NS400-DC01 |
ECA25-SN-300-DC01 |
ECA25-SN080-AC01 |
ECA25-NS080-AC01 |
|
|
Max 500A |
Max 500A |
Max 80A |
Max 80A |
|
|
Max 1000V DC |
Max 1000V DC |
Max 250V AC |
Max 250V AC |
|
|
Tesla V3 and V4 Superchargers |
All CCS1 Chargers |
All J1772 Chargers |
Tesla High Powered Wall Connectors, Destination Chargers, Mobile |
|
|
EVs with CCS1 port |
Tesla Model 3/S/X/Y and other EVs with NACS port (excluding Cybertruck) |
Tesla Model 3/S/X/Y and other EVs with NACS port |
EVs with J1772 port |
|
|
IP54 |
IP54 |
IP54 |
IP54 |
|
|
SAE J1772, SAE J3400, IEC 62196-3 |
SAE J1772, SAE J3400, IEC 62196-3 |
SAE J1772, SAE J3400 |
SAE J1772, SAE J3400 |
|
|
FCC |
FCC |
FCC |
FCC |
|
|
126.4*70.1*107.12 |
137.6*85.14*122.98 |
87.84*51.20*68.17 |
125.73*55*79.57 |
|
|
2 Years |
2 Years |
2 Years |
2 Years |

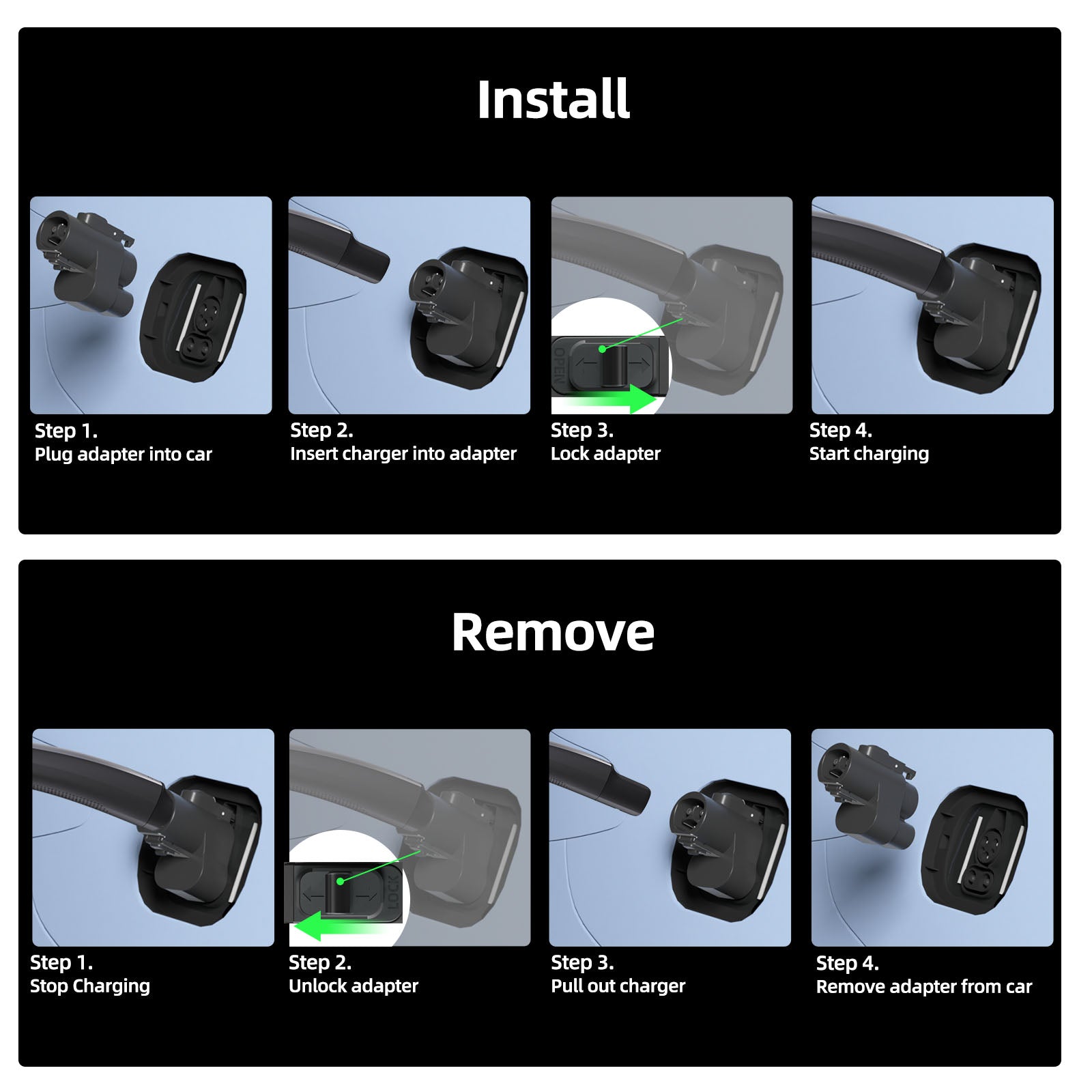

Easy Steps to Charge and Remove

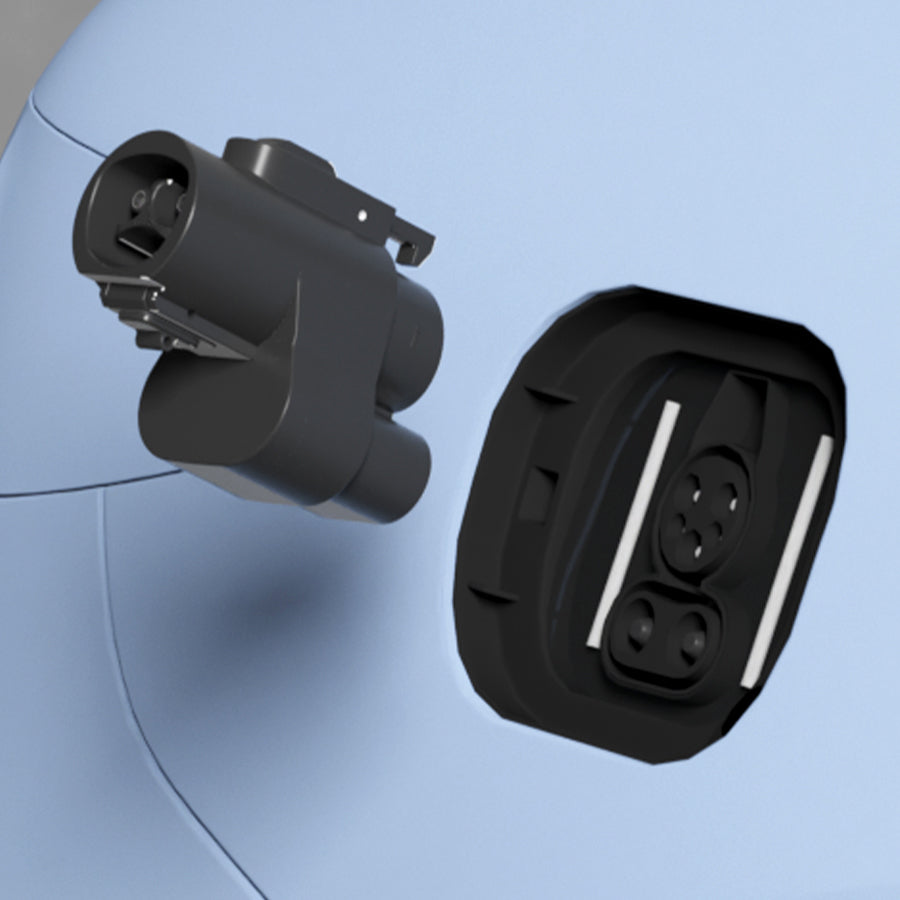

Plug adapter into car

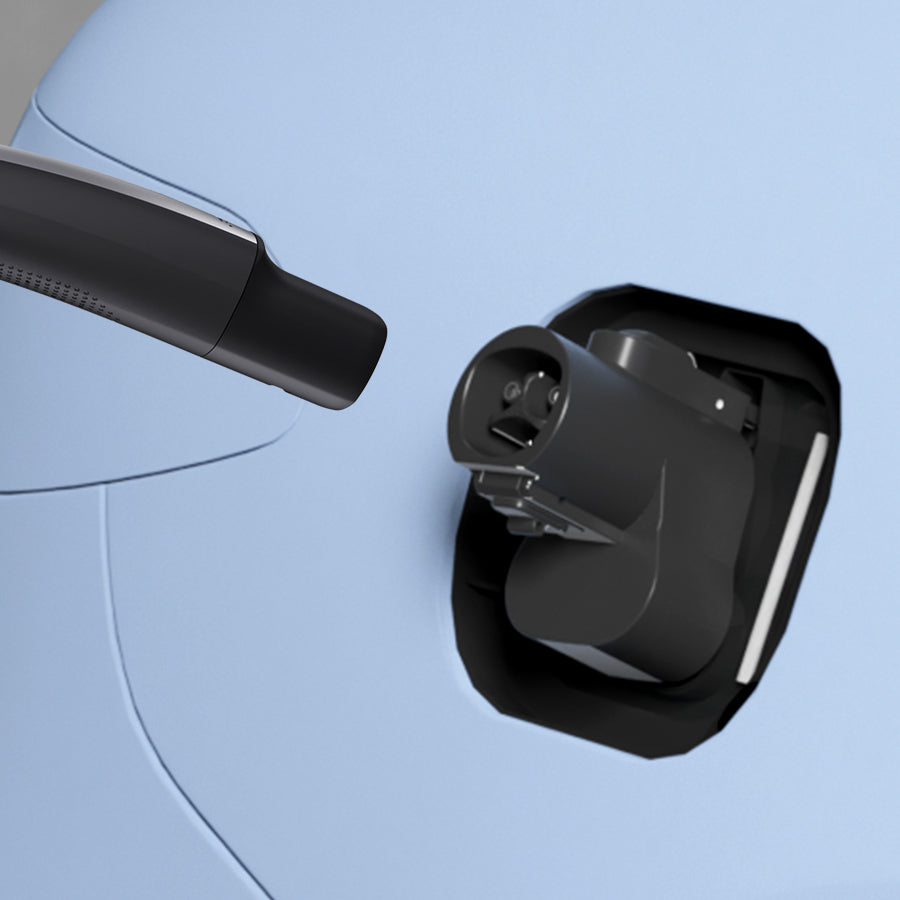

Insert charger into adapter

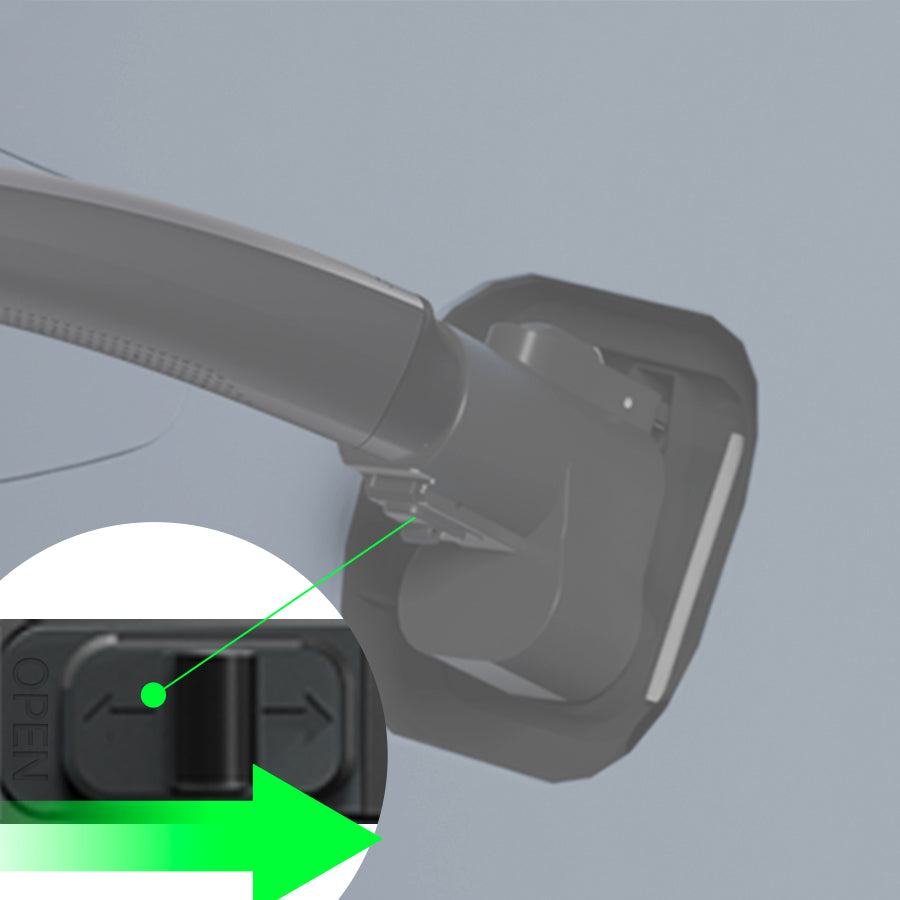

Lock adapter

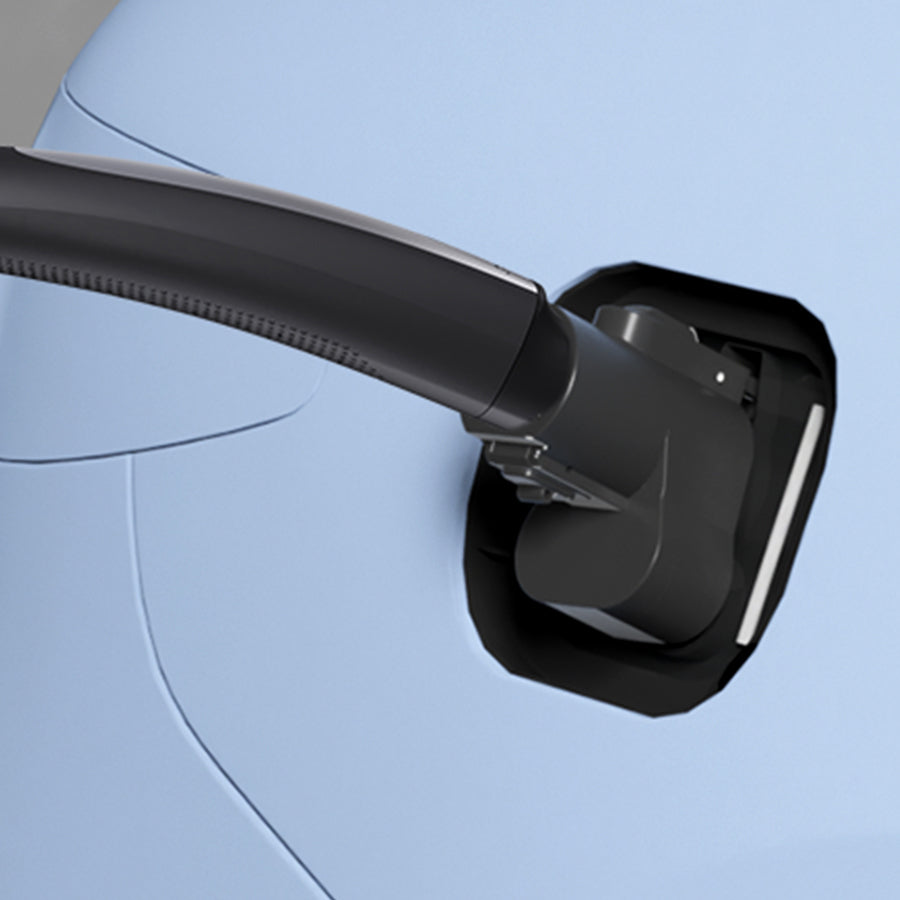

Start charging
Stop charging

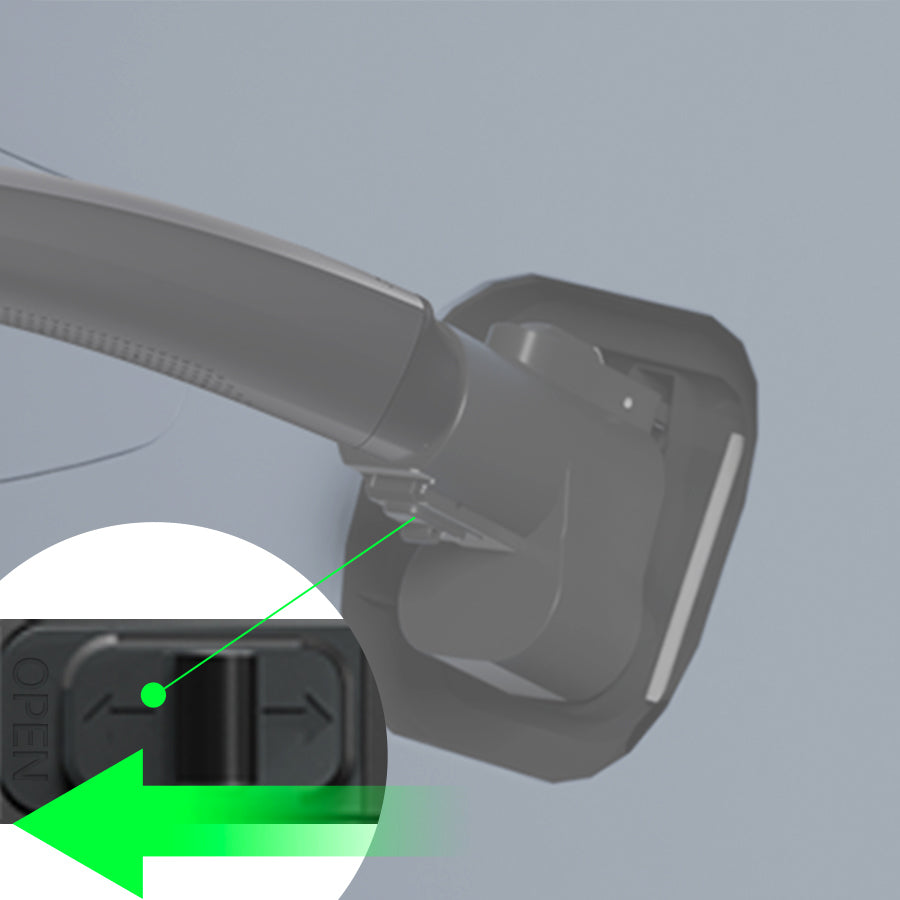

Unlock adapter
Pull out charger
